Technical Solution Overview
I. Solution Overview
This solution aims to build a high-performance content delivery platform for global users, supporting multimedia content (articles, images, videos) publishing, browsing, interaction, and management.
The system is built on Google Cloud Platform (GCP), achieving global high availability, elastic scaling, and security protection through cloud-native services.
Technical Objectives:
Performance
Provide stable, low-latency global content access experience
Architecture
Support separation and efficient distribution of static and dynamic content
Automation
Achieve operational simplification through automation and cloud-native services
Security
Ensure data security and system reliability
II. Overall Technical Architecture
The platform adopts a layered and partitioned cloud architecture design with core components including:

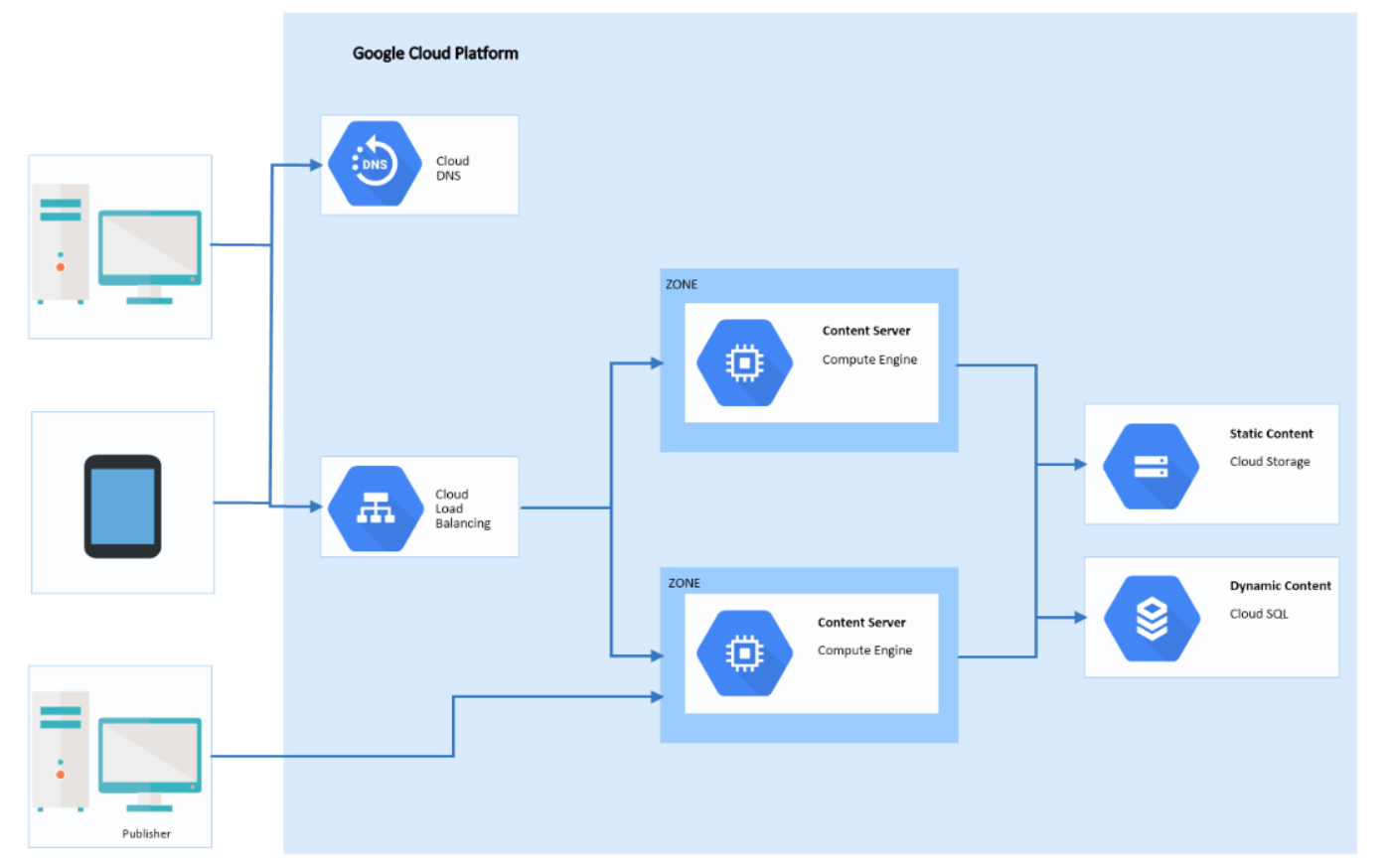

Architecture Diagram
Figure: High-level architecture of the Global Content Delivery Platform on Google Cloud Platform
Cloud DNS
Domain name resolution and traffic entry management
Cloud Load Balancing
Global traffic distribution and health detection
Compute Engine
Dynamic application logic and API services
Cloud Storage + CDN
Static content distribution and cache acceleration
Cloud SQL
Structured data and business information storage
Cloud Monitoring
System monitoring and performance tracking
III. Key Technical Design
1. Content Access & Distribution
Static Content
(Images, videos, CSS, JS files)
- Stored in Cloud Storage
- Global edge node caching via Cloud CDN
- Automatic routing to nearest CDN edge nodes
- Significantly reduced access latency
Dynamic Content
(Articles, user data, comments, etc.)
- Backend application logic on Compute Engine
- Real-time queries and updates via Cloud SQL
- RESTful API & GraphQL interfaces
- Easy integration with frontend and mobile apps
2. Elastic Scaling & High Availability
Compute Engine
Configured with Autoscaling Groups based on CPU or request metrics
Cloud SQL
High Availability (HA) mode and Read Replicas for performance and fault tolerance
Multi-region Deployment
Redundant paths for global user access (us-central1, asia-east1, europe-west1)
3. Security Protection Mechanisms
Data Security
- Full-site HTTPS + SSL certificates for secure data transmission
- Cloud Armor for DDoS attack defense and traffic anomaly detection
- IAM permission policies to restrict management and access operations
- VPC internal communication controlled by firewall rules
Data Management & Backup
- Cloud SQL automatic backup and point-in-time recovery
- Cloud Storage object versioning to prevent accidental deletion
- Regular export of key data to Cloud Storage archive or BigQuery
4. System Monitoring & Maintenance
Monitoring & Analytics
- Cloud Monitoring for performance metrics (CPU, memory, request latency)
- Cloud Logging for application logs and error events
- Alert policies for automatic notification during anomalies
- Dashboard for real-time visualization and traffic analysis
IV. Performance & Scalability Solutions
| Technical Element | Design Strategy | Effect |
|---|---|---|
| Content Distribution | Cloud Storage + CDN | Global acceleration, reduced latency |
| Dynamic Content Processing | Compute Engine Autoscaling | High concurrency support, elastic scaling |
| Data Read/Write Performance | Cloud SQL Replica Mechanism | Read/write separation, improved throughput |
| Traffic Scheduling | Cloud Load Balancing | Global load balancing & failover |
| Network Optimization | HTTP/2 + Compression | Improved transmission efficiency |
| Caching Strategy | CDN + Application Layer Cache | Reduced database pressure |
V. Future Technology Expansion
To further enhance the platform's intelligence and automation capabilities, future considerations include:
Cloud Pub/Sub
Real-time content push and message queue implementation
Cloud Functions
Automated execution of content review, tag generation tasks
BigQuery
User behavior analysis and content recommendation model training
AI/ML Integration
Vertex AI for intelligent recommendations and content classification
VI. Technical Advantages Summary
| Dimension | Advantage Description |
|---|---|
| Architecture Reliability | Multi-availability zone deployment with automatic failover ensures continuous service |
| Content Delivery | CDN + Cloud Storage provides global low-latency access |
| Scalability | Autoscaling and distributed architecture support high traffic peaks |
| Security | HTTPS, IAM, Cloud Armor provide comprehensive protection |
| Operational Efficiency | Cloud-native monitoring and automated backup reduce manual intervention |
